Max Feeding Size(mm):100-500
Vibrating Speed(r/min):1450
Double Amplitude(mm):4

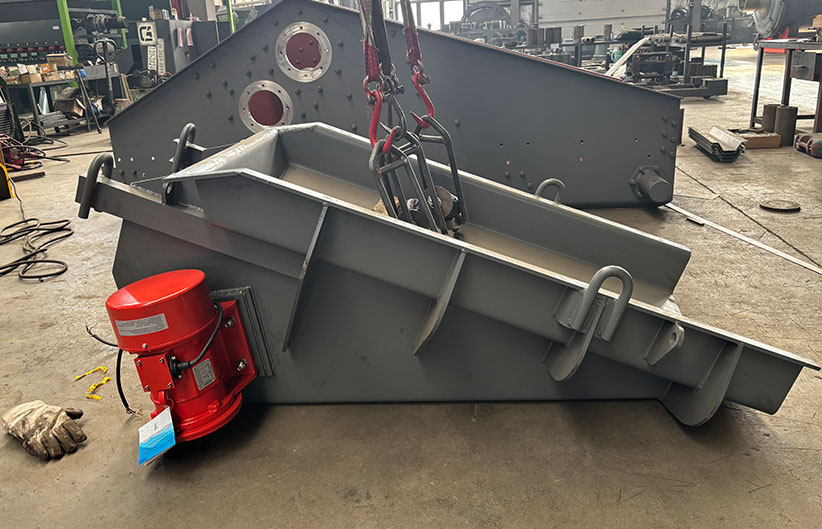

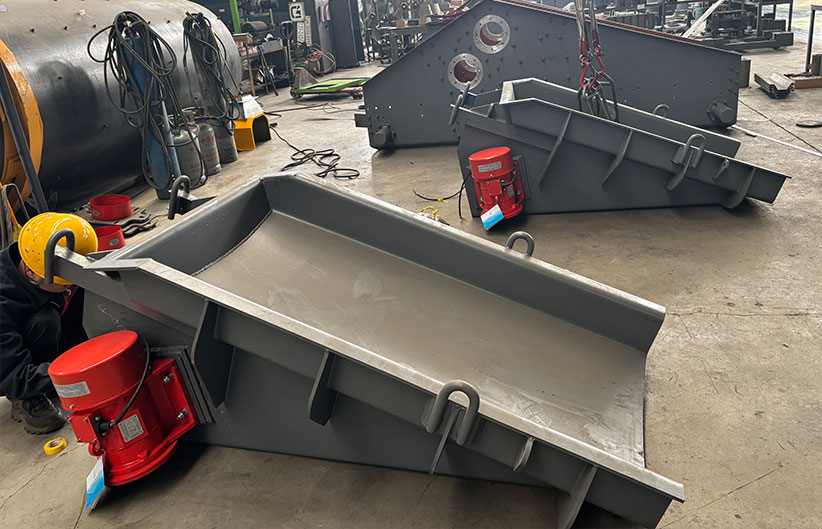

The GZG series vibrating feeder is widely utilized across various industries—including mining, metallurgy, coal, building materials, and machinery—to uniformly, continuously, or quantitatively feed lumpy, granular, and powdery materials from storage bins or hoppers into receiving devices.
| 型号 Model |
最大给料粒度 | 振动速度 | 双振幅 | 通过量 | 电机功率 | 料槽尺寸 | 外形尺寸 | |
| Max Feeding Size(mm) | Vibrating Speed(r/min) | Double Amplitude(mm) | Capacity (t/h) | Power(kw) | Size of Funnel(mm) | OverallDimension(mm) | ||
| GZG40-4 | 100 | 1450 | 4 | 30 | 40 | 2×0.25 | 400×1000×200 | 1337×750×600 |
| GZG50-4 | 150 | 1450 | 4 | 60 | 85 | 2×0.25 | 500×1000×200 | 1374×800×630 |
| GZG634 | 200 | 1450 | 4 | 110 | 150 | 2×0.50 | 630×1250×250 | 1648×1000×767 |
| GZG80-4 | 250 | 1450 | 4 | 160 | 230 | 2×0.75 | 800×1500×250 | 1910×1188×850 |
| GZG90-4 | 250 | 1450 | 4 | 180 | 250 | 2×0.75 | 900×1483×250 | 2003×1178×960 |
| GZG1004 | 300 | 1450 | 4 | 270 | 380 | 2×1.1 | 1000×1750×250 | 2190×1362×900 |
| GZG1104 | 300 | 1450 | 4 | 300 | 420 | 2×1.1 | 1100×1673×250 | 2151×1362×970 |
| GZG125-4 | 350 | 1450 | 4 | 460 | 650 | 2×1.5 | 1250×2000×315 | 2540×1500×1030 |
| GZG130-4 | 350 | 1450 | 4 | 480 | 670 | 2×1.5 | 1300×2040×300 | 2544×1556×1084 |
| GZG150-6 | 350 | 975 | 4-7 | 520 | 750 | 2×3.0 | 1500×1800×400 | 2250×1864×1412 |
| GZG160-6 | 500 | 1450 | 4 | 770 | 1100 | 2×3.0 | 1600×2500×315 | 3050×1850×1110 |
| GZG1804 | 500 | 1450 | 3 | 900 | 1200 | 2×3.0 | 1800×2325×375 | 2885×2210×1260 |
| GZG200-4 | 500 | 1450 | 2.5 | 1000 | 1400 | 2×3.7 | 2000×3000×400 | 3490×2400×1220 |
