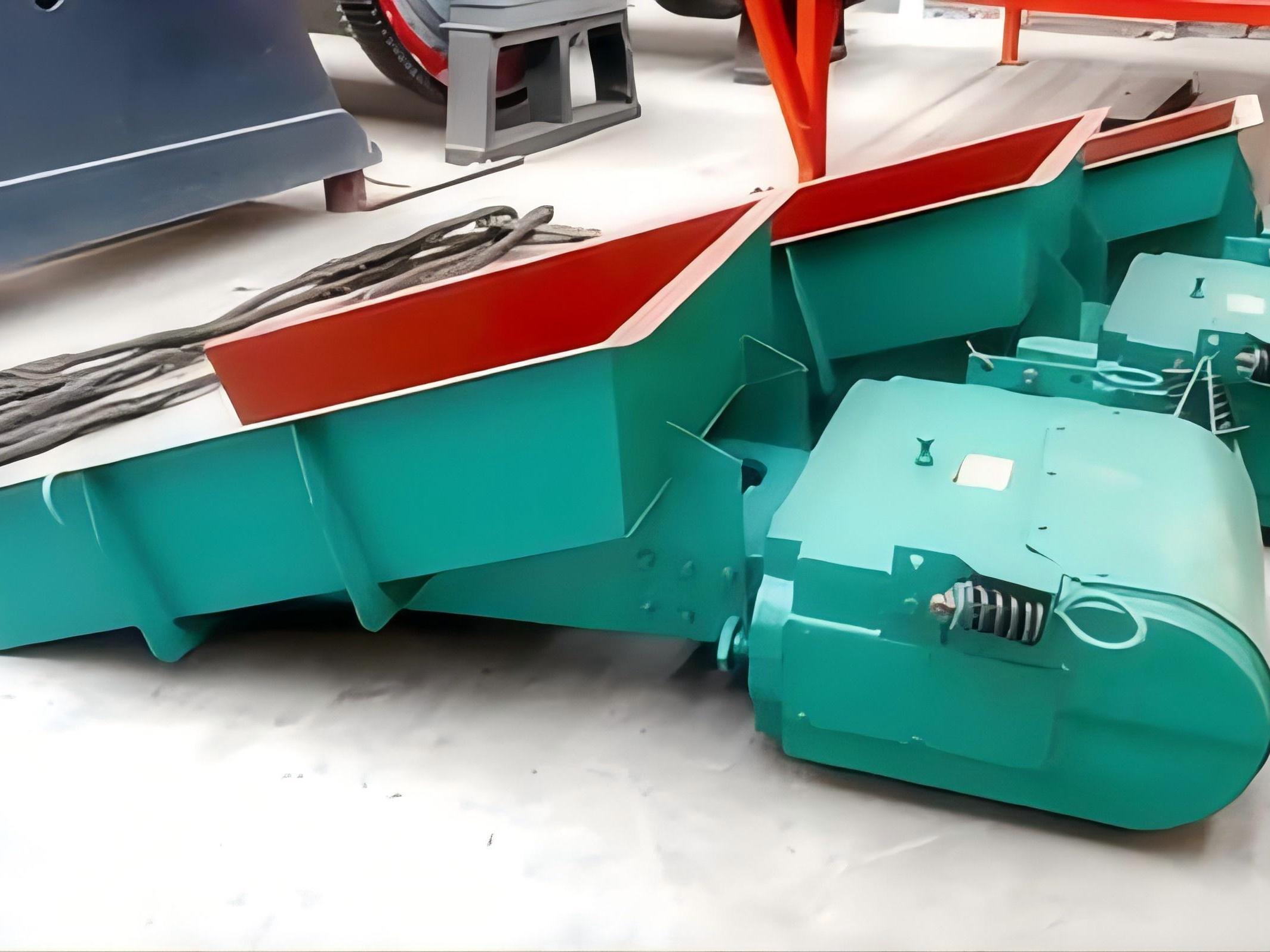

home - Auxiliary Equipments and Others - GZ Series Electromagnetic Vibrating Feeders2
/ 3
Capacity(t/h):1-20
Max.Feed size(mm):100
Power(w):60-650
Electromagnetic vibrating feeders are used to convey materials from hoppers or other storage bins to receiving equipment in a uniform and quantitative manner. They are an essential component of automated production lines. Vibrating feeders are typically classified into two types: open and enclosed.
| 型号 Model |
给料能力 Capacity(t/h) |
最大允许粒数 Max.Feed size(mm) |
功率 Power(w) |
电压 Voltage(v) |
电流 Current(A) |
双振幅 Double amplitude(mm) |
间隙 Gap(mm) |
| GZ1 | 1-2 | 25 | 60 | 220 | ≤1 | 1.75 | 1.9-2.2 |
| GZ2 | 3-4 | 35 | 150 | 220 | ≤2.3 | 1.75 | 1.9-2.2 |
| GZ3 | 5-7 | 40 | 200 | 220 | ≤3.8 | 1.75 | 1.9-2.2 |
| GZ4 | 8-12 | 60 | 450 | 220 | ≤7 | 1.75 | 1.9-2.2 |
| GZ5 | 12-20 | 100 | 650 | 220 | ≤10.6 | 1.75 | 1.9-2.2 |
