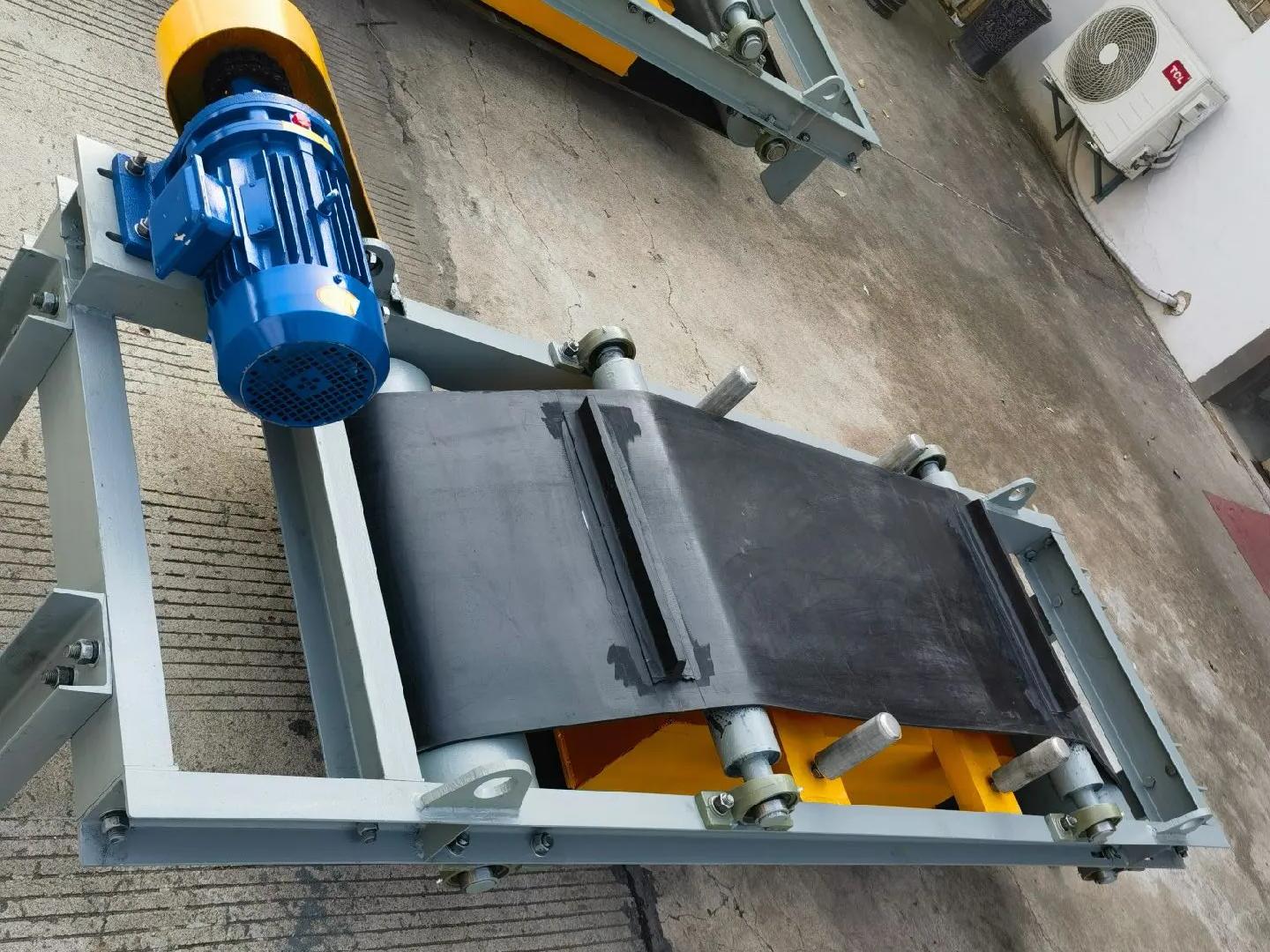

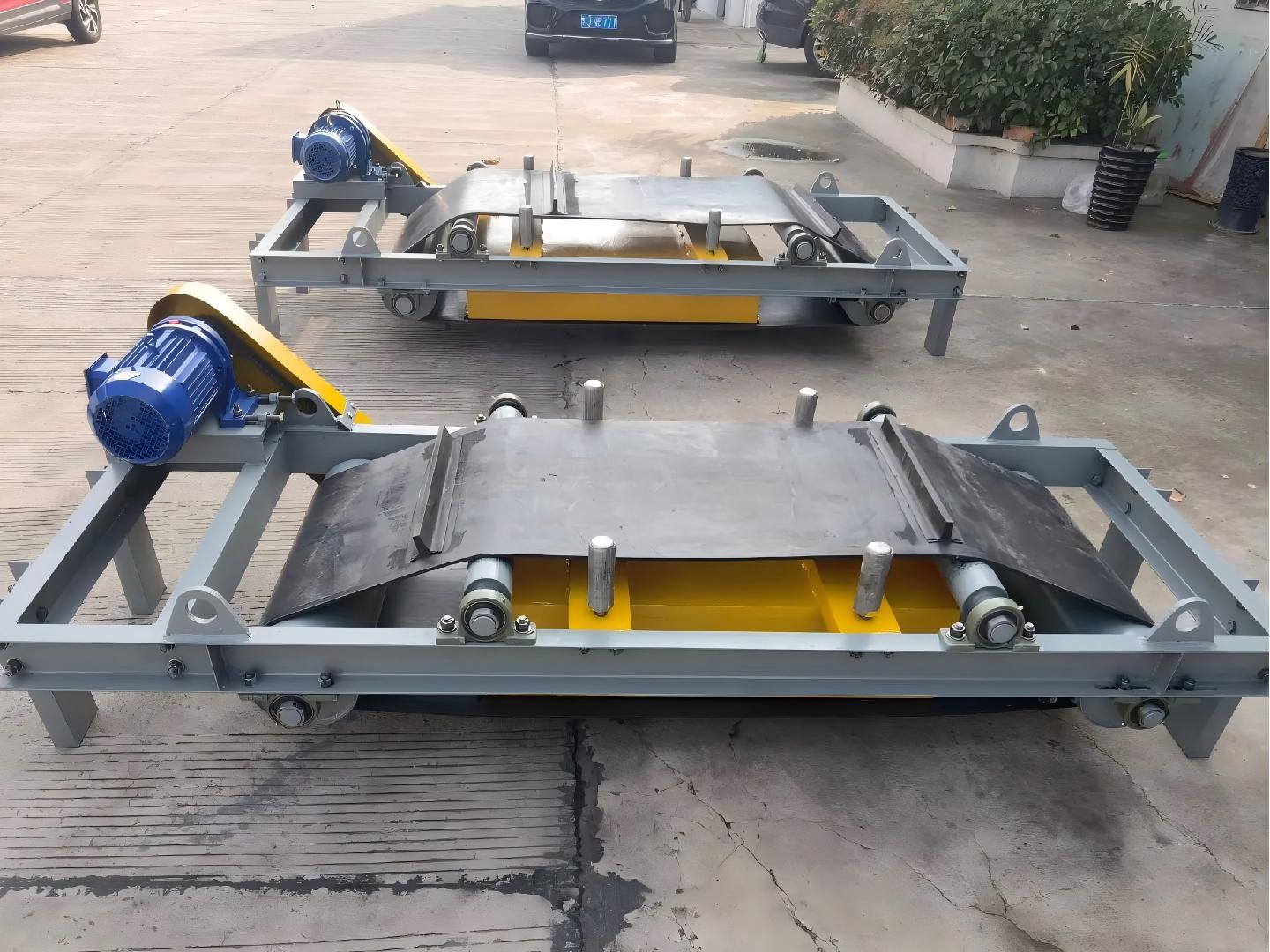

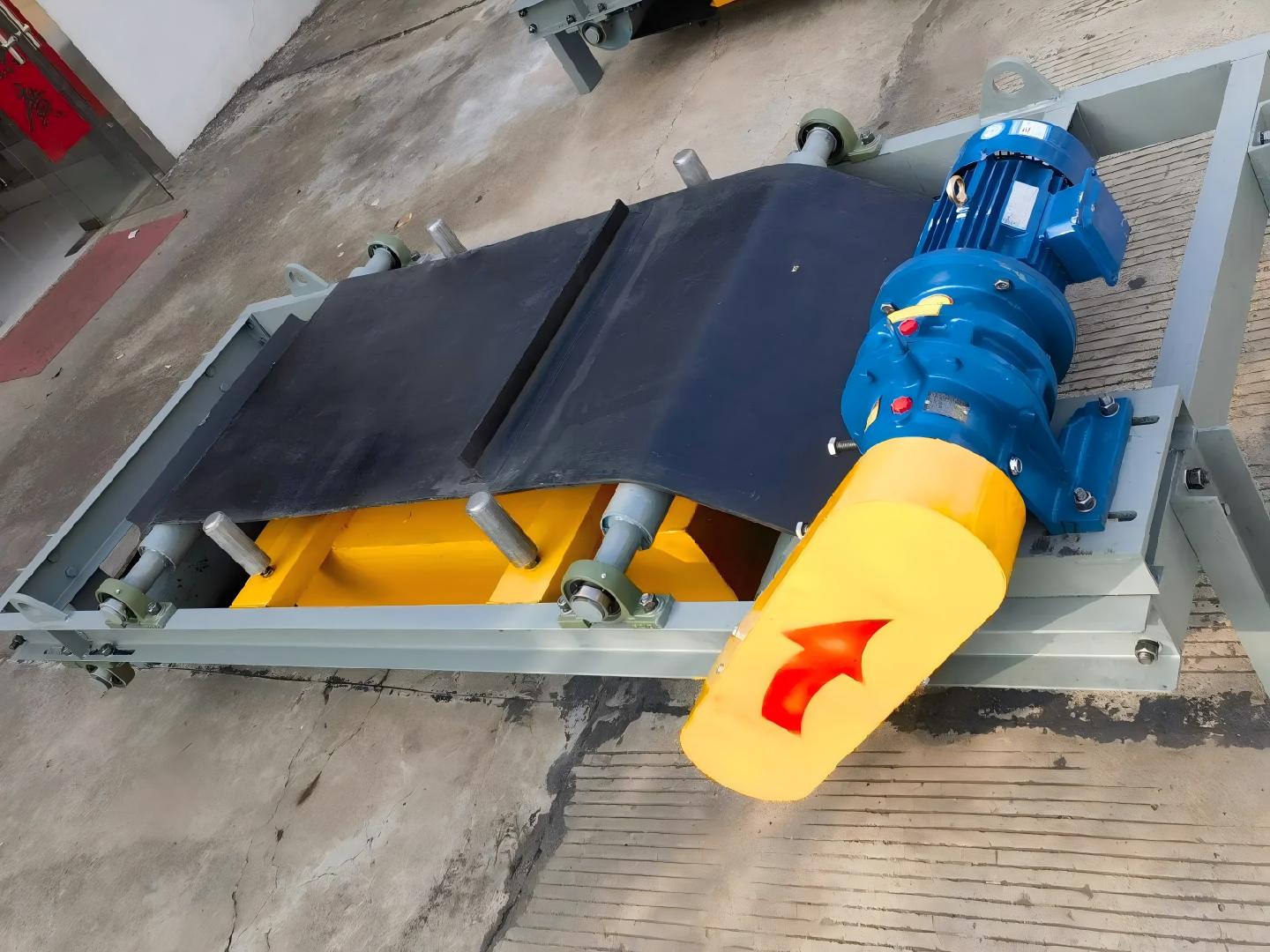

Iron remover
Iron remover
Iron remover
Iron remover
Iron remover

Iron remover

parameter

  • Power(≤kw)：1.5-4

  • Belt width (mm)：500-1200

  • Rated height (h≤mm):150-350

Product Introduction

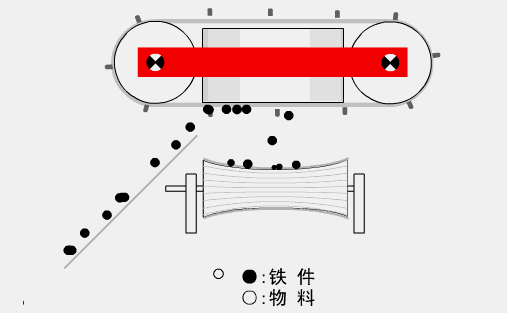

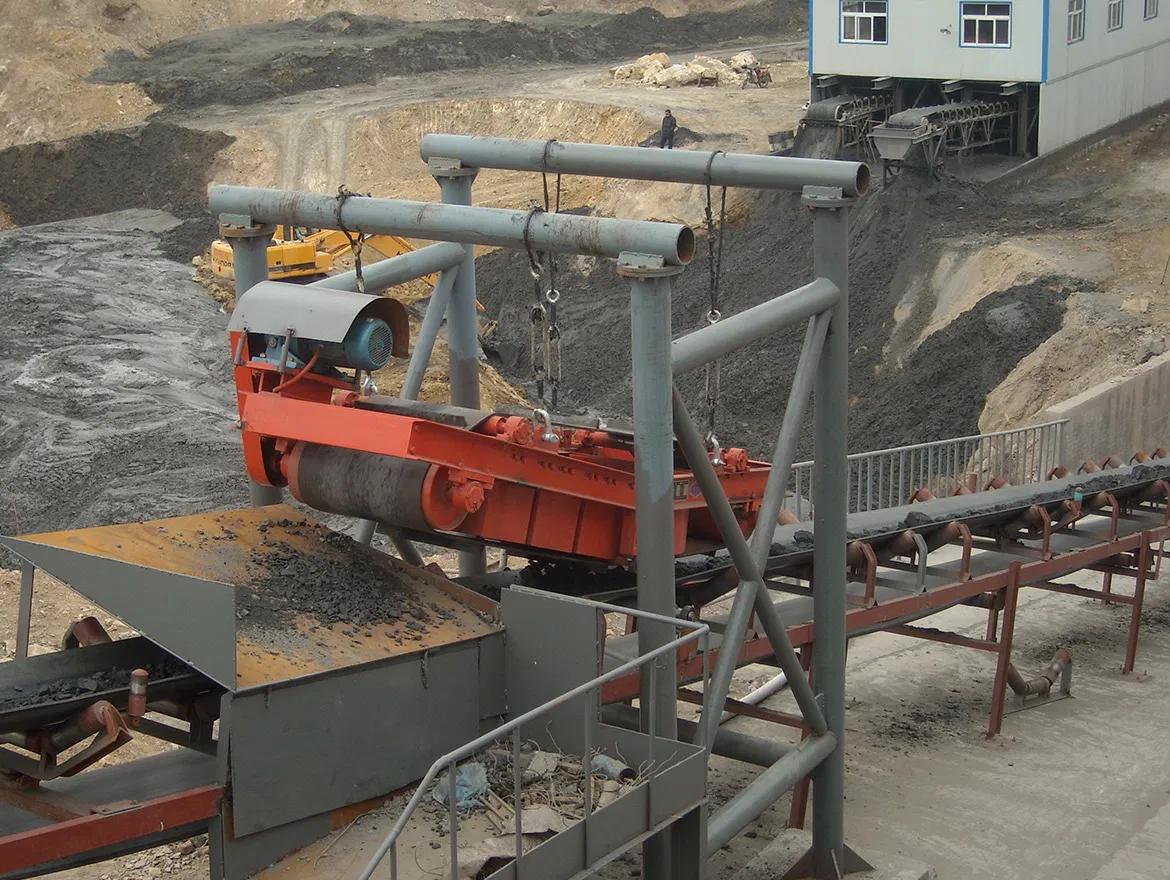

A magnetic separator is a device capable of generating a strong magnetic field, used to remove ferrous impurities mixed within raw materials, thereby ensuring the safe operation of equipment such as crushers and mills. Furthermore, it helps prevent large or elongated ferrous objects from damaging conveyor belts.
Chat Online

Product Overview


A magnetic separator is a device capable of generating a strong magnetic field, used to remove ferrous impurities mixed within raw materials, thereby ensuring the safe operation of equipment such as crushers and mills. Furthermore, it helps prevent large or elongated ferrous objects from damaging conveyor belts.

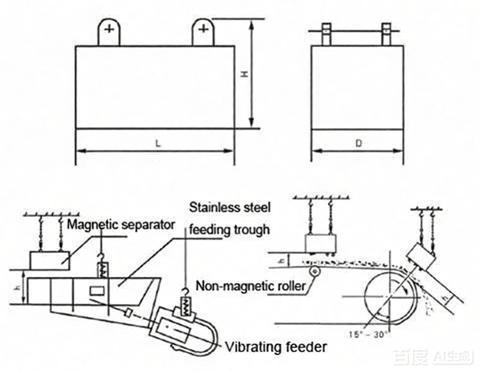

型号/参数/项目 Model 适应带宽
Belt width (mm)		 额定吊高
Rated height (h≤mm)		 物料厚度
Material thickness (≤mm)		 驱动功率
Power(≤kw)		 适应带速
Belt speed (m/s)
RCYD-5 500 150 80 1.5 2.5
RCYD-6.5 650 200 150 1.5 2.5
RCYD-8 800 250 200 2.2 2.5
RCYD-10 1000 300 250 3 2.5
RCYD-12 1200 350 300 4 2.5


Working principle

The working principle of electromagnetic vibrating feeder is based on the magnetic pulse drive of electromagnet. When the electromagnetic exciter is powered on, the electromagnet will generate periodic magnetic force, causing the feed trough to vibrate at high frequency. This vibration is transmitted to the material in a linear manner, causing the material to jump and throw in the trough, thereby achieving continuous material transportation.



Product Structure

The main structure of electromagnetic vibrating feeder includes two parts: feeding trough and electromagnetic exciter. Unlike motor-driven vibrating feeders, electromagnetic vibrating feeders use electromagnets as power sources, which reduces the number of moving parts, thereby reducing the failure rate and maintenance cost of the equipment.
