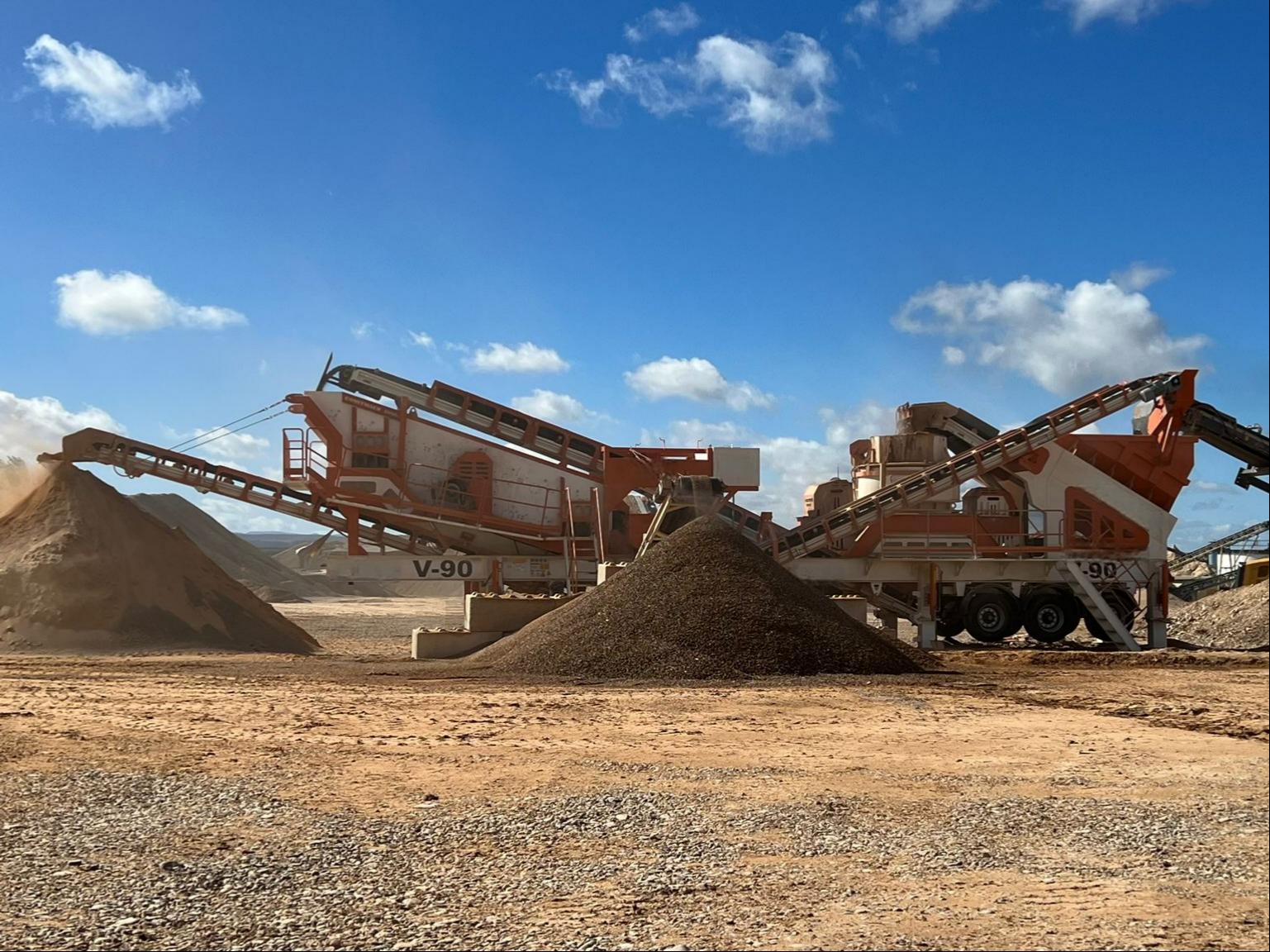

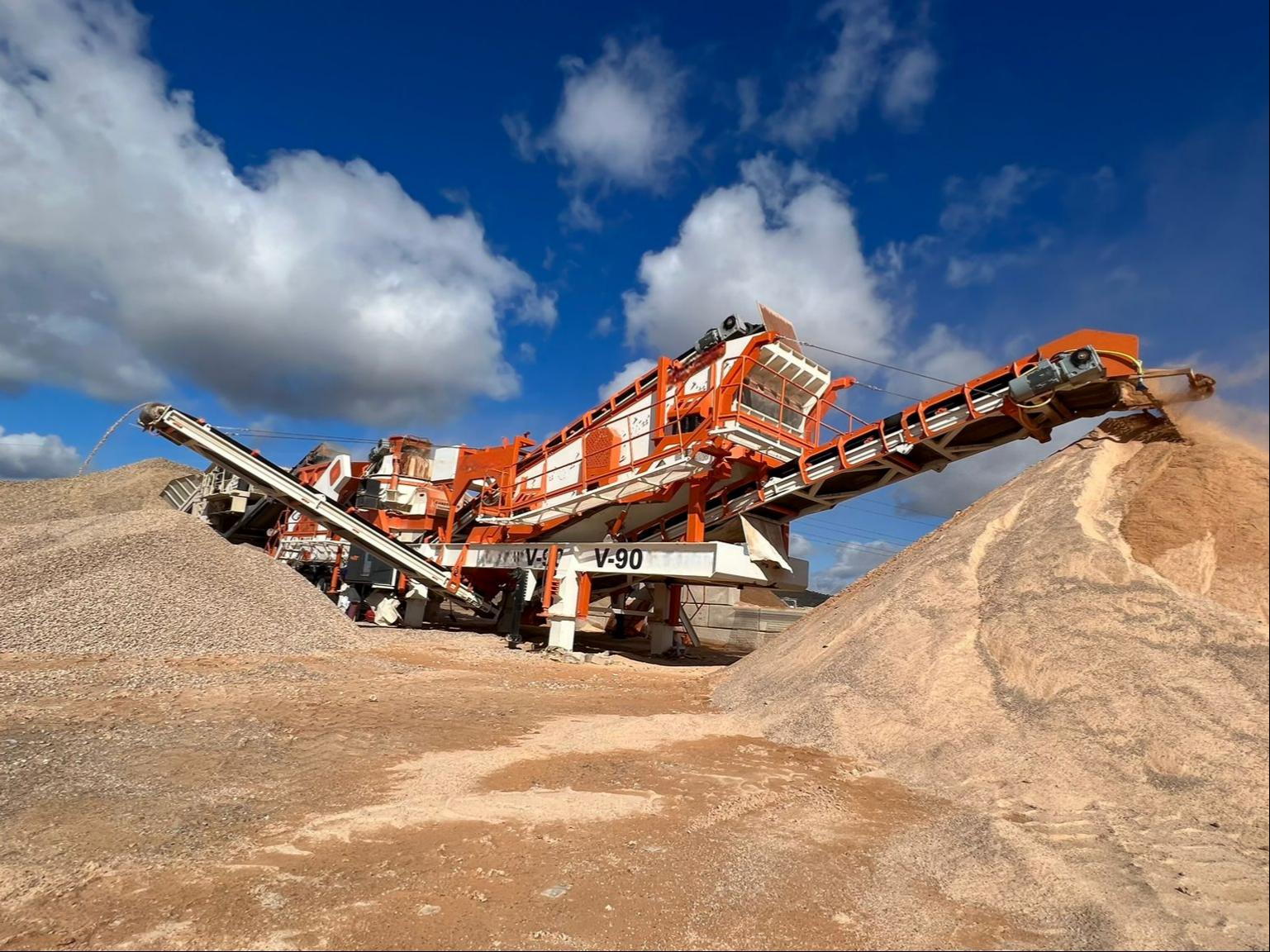

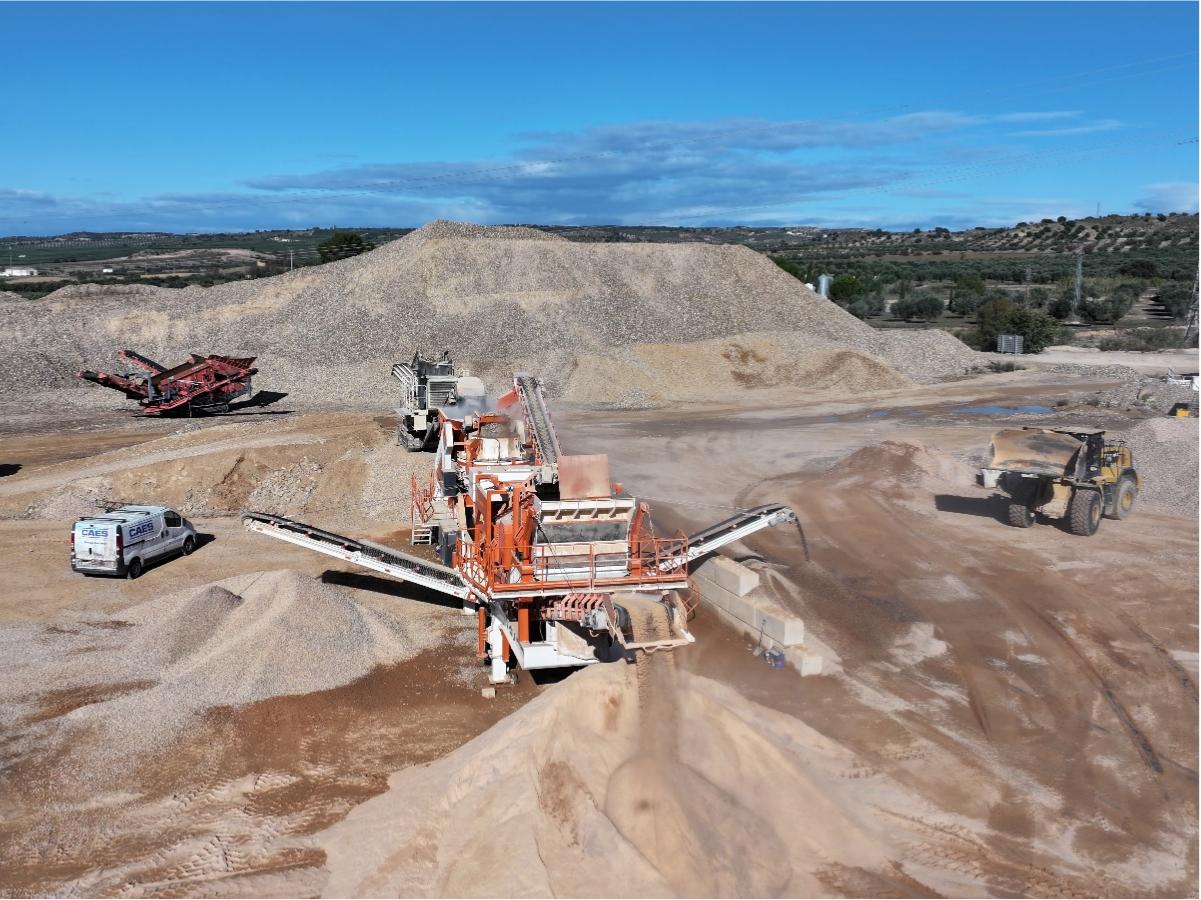

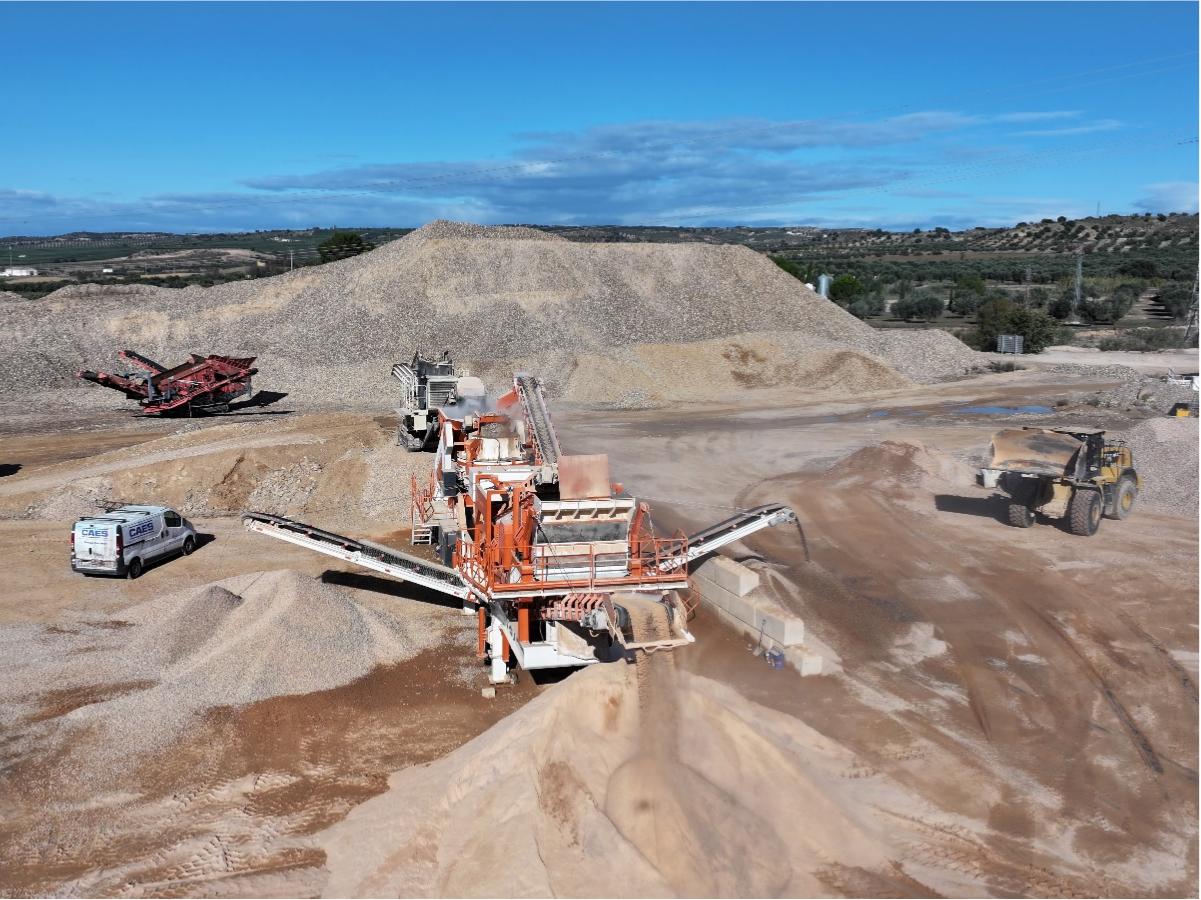

Mobile sand making plant
Mobile sand making plant
Mobile sand making plant
Mobile sand making plant
Mobile sand making plant

Mobile sand making plant

parameter

  • NS1848VS18518

  • NS1860VS19526

  • Custom Made

Product Introduction

Mobile sand making plant is made up of the vibrating screen,belt conveyor,sand making machine,motor and control box and so on,this machine can eliminate the crushing area,environment,basic configuration for the client crushing work barriers,reduce the cumbersome infrastructure installation process and time consuming, and truly provide customers with convenient,efficient,low cost of crushing equipment.
Chat Online

Product Overview

Mobile sand making plant is made up of the vibrating screen,belt conveyor,sand making machine,motor and control box and so on,this machine can eliminate the crushing area,environment,basic configuration for the client crushing work barriers,reduce the cumbersome infrastructure installation process and time consuming, and truly provide customers with convenient,efficient,low cost of crushing equipment.
Item Transportlength(mm) Transport width(mm) Transport height(mm) Maximumlength (mm) Processing capacity (t/h) Screen type
NS1848VS18518 14200 3000 4500 14920 200-260 3YK1848
NS1860VS19526 14200 3000 4500 14920 300-380 3YK1860

Working principle

The main crusher machine of the mobile crushing plant can be a jaw crusher, an impact crusher, or a cone crusher. The material is evenly transported to the crusher through the feeder. After being initially crushed by the crusher, a circular vibrating screen forms a closed-circuit system to realize the cyclic crushing of the material. Materials that meet the particle size requirements are output by the belt conveyor to achieve production purposes.

The mobile crushing plant can also remove the circular vibrating screen according to actual production needs, directly crush the materials initially, and then cooperate with other crushing equipment to perform specific operations, which is convenient and flexible.

Product Structure

Feeding: The large bulk material is loaded into the vibrating feeder.
2Primary crushing: The mobile jaw crusher crushes the large chunks.
3Secondary crushing: The crushed material is passed to an impact crusher or cone crusher for medium crushing and fine crushing.
4Screening: The vibrating screen sorts materials by size, sending qualified ones to the conveyor and returning the unqualified materials for further crushing, forming a closed-loop system.

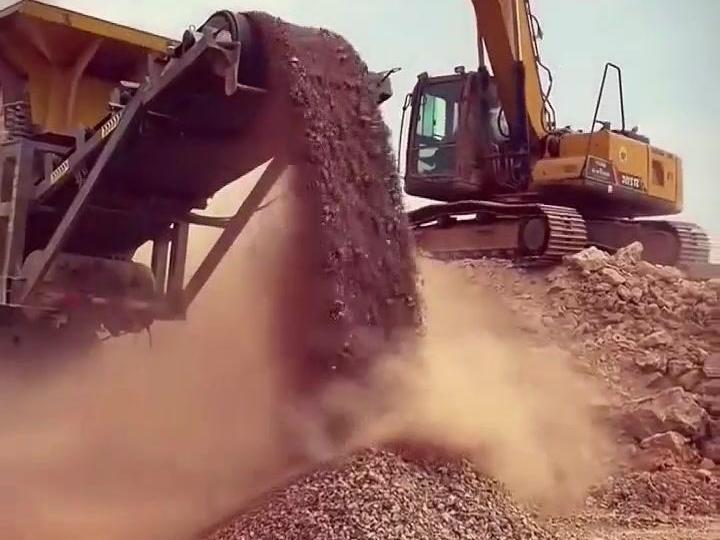

5Output: The qualified finished aggregate is discharged from the belt conveyor.


Advantages

Mobility: can be easily moved to different construction sites for maximum flexibility.

High efficiency: powerful crushers and screens are designed to achieve high output.

Cost-effective: no need to transport raw materials, reducing operating costs.

Durability: with a sturdy structure to withstand harsh working environments.

Versatility: Suitable for a wide range of crushing processes from primary to tertiary.
