Thickener
Thickener
Thickener
Thickener
Thickener

Thickener

parameter

  • Capacity(t/d):5.6-3400

  • Power(kw):1.1-11

  • Diameter(m):1.8-53

Product Introduction

Thickeners are designed to increase the concentration of mineral slurries, thereby ensuring that production processes meet requisite concentration standards. Typically classified into two types—peripheral-drive and central-drive—this equipment is frequently employed in mineral processing plants for the treatment of concentrates, middlings, and tailings. Currently, it is widely utilized across a diverse range of industrial sectors, including metallurgy, chemical engineering, coal mining, and environmental protection.
Chat Online

Product Overview

Product Overview

Thickeners are designed to increase the concentration of mineral slurries, thereby ensuring that production processes meet requisite concentration standards. Typically classified into two types—peripheral-drive and central-drive—this equipment is frequently employed in mineral processing plants for the treatment of concentrates, middlings, and tailings. Currently, it is widely utilized across a diverse range of industrial sectors, including metallurgy, chemical engineering, coal mining, and environmental protection.

型号 Model 传动方式
Transmission form		 浓缩池Concentration tank 生产能力Capacity(t/d) 配套电机Motor
直径Diameter(m) 中央深度 Depth(m) 功率Power(kw)
NZS-1 中心传动Centre drive 1.8 1.8 5.6 1.1
NZS-3 中心传动Centre drive 3.6 1.8 22.4 1.1
NZS-6 中心传动Centre drive 6 3 62 3
NZS-9 中心传动Centre drive 9 3 140 3
NZS-12 中心传动Centre drive 12 3.5 250 3
NG-15 周边辊轮Rollers 15 3.5 390 5.5
NG-18 周边辊轮Rollers 18 3.5 560 5.5
NG-24 周边辊轮Rollers 24 3.7 1000 7.5
NG-30 周边辊轮Rollers 30 3.6 1570 7.5
NT-15 周边齿条Rack gear 15 3.5 390 5.5
NT-18 周边齿条Rack gear 18 3.5 560 5.5
NT-24 周边齿条Rack gear 24 3.7 1000 7.5
NT-30 周边齿条Rack gear 30 3.6 1570 7.5
NT-45 周边齿条Rack gear 45 5.1 2400 11
NT-50 周边齿条Rack gear 50 4.5 3000 11
NT-53 周边齿条Rack gear 53 5.1 3400 11


Working principle

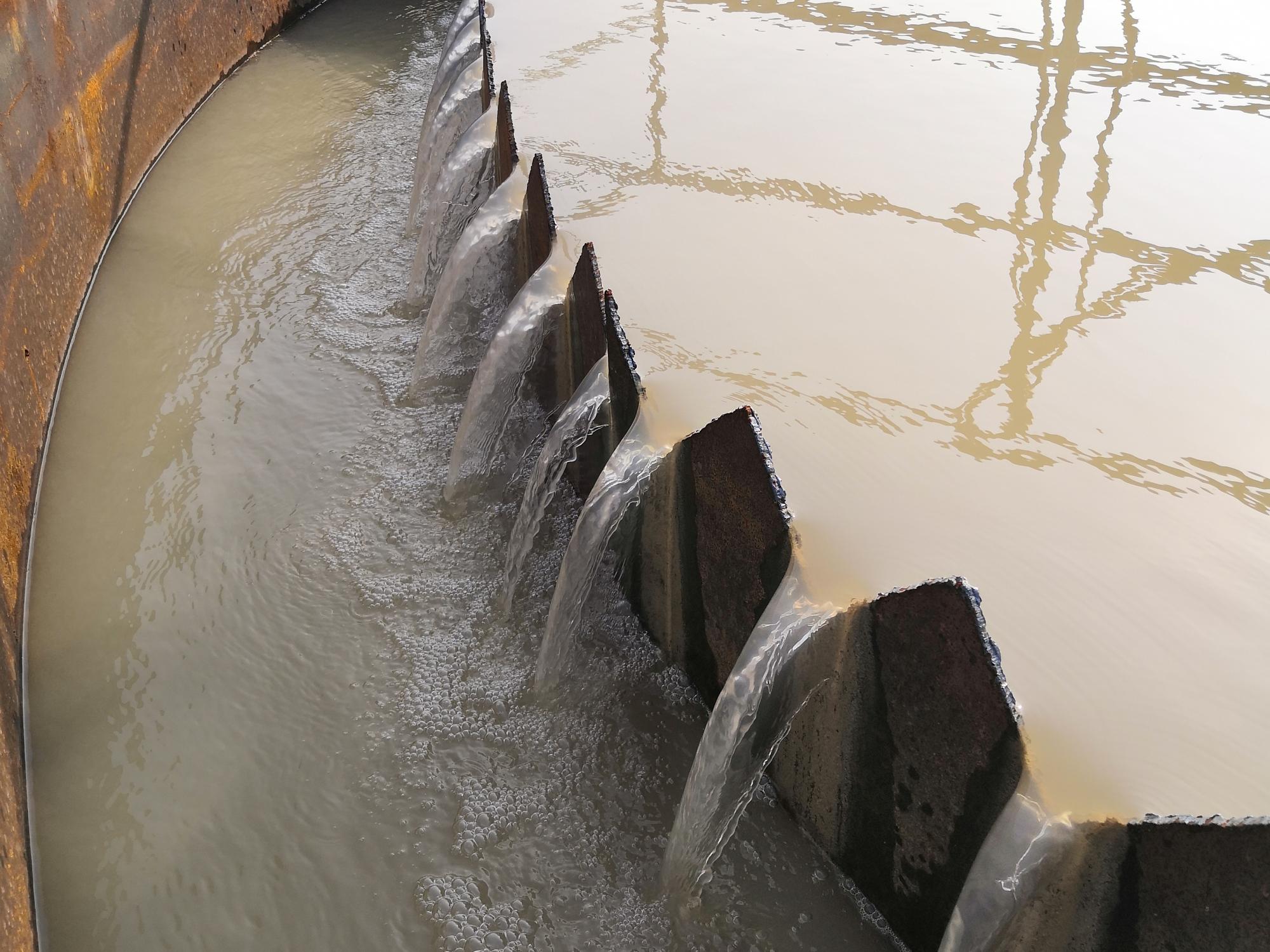

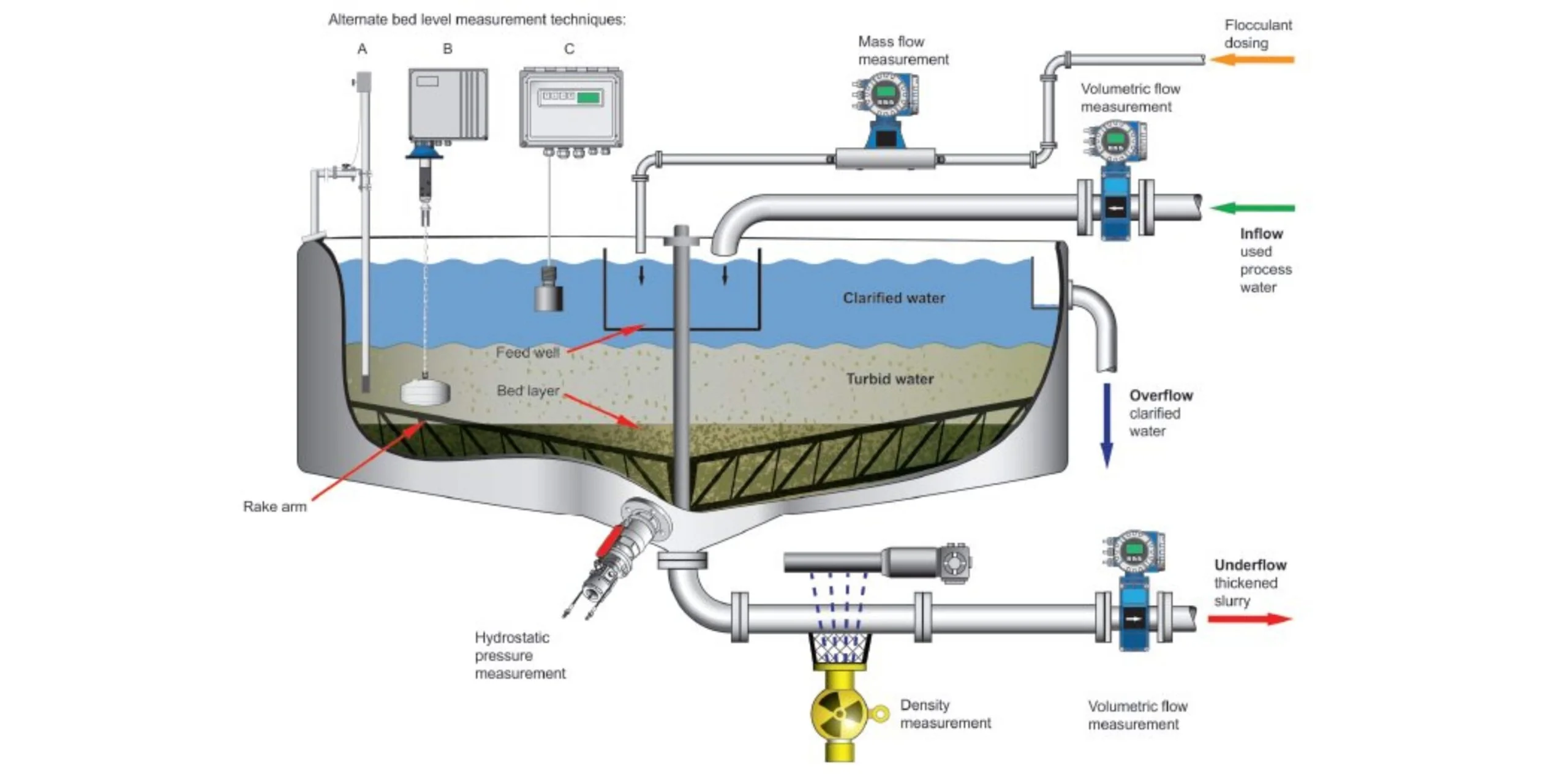

The industrial thickener consists of a cylindrical basin filled with water, the contents of which are completely purified with the help of sedimentation or solid separation from the liquid. The working method of the thickener is that after entering the industrial wastewater into the tank and reducing its turbulence, part of the solid water particles are exposed to various forces such as gravity and centrifugal force due to the difference in weight and the movement of the thickener paddles and settle at the bottom of the pond. After the formation of the thick paste (Underflow) in the lower part of the thickener tank, it is time to leave the clear liquid formed on the water, which is called the thickener head or Overflow, which takes place through the channel in the upper part of the pond. In the last stage of the thickener method, the sediments deposited in the end section are sent to the central duct of the thickener with the help of one or more rotating arms and are thus removed.



Product Structure

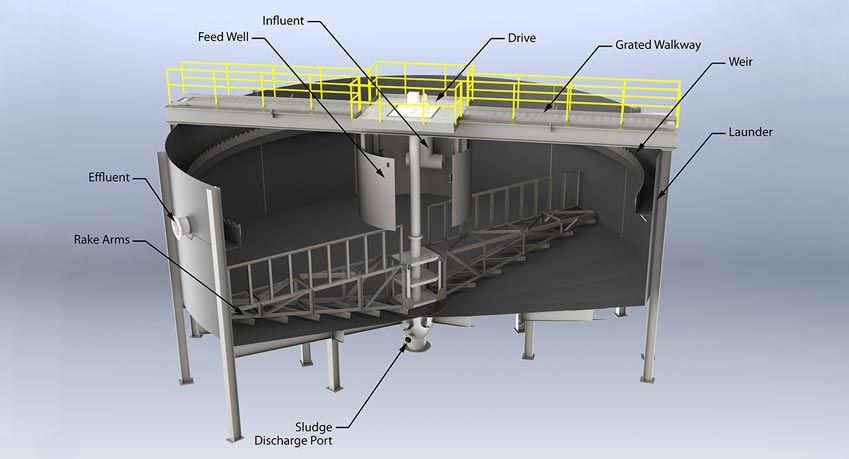

The high-efficiency thickener mainly consists of key components including the feed pipe, feed launder, scraper, rake arm, overflow pipe, and underflow discharge pipe.
Generally, a thickener is primarily divided into three layers. The first layer is the feed layer, which is responsible for processing and delivering the ore slurry into the settling tank. The second layer is the settling layer, where impurities in the slurry gradually settle, forming purified slurry. The third layer is the bottom sludge discharge layer, mainly used for removing the settled impurities.



Advantages

1. Large processing capacity per unit area and high concentration efficiency.
2. Hydraulic multi-point drive, stepless speed regulation, high mechanical strength, and overload protection function.
3. It adopts hydraulic rake device and operates reliably.

Product details presentation concluded. Thank you for watching.
