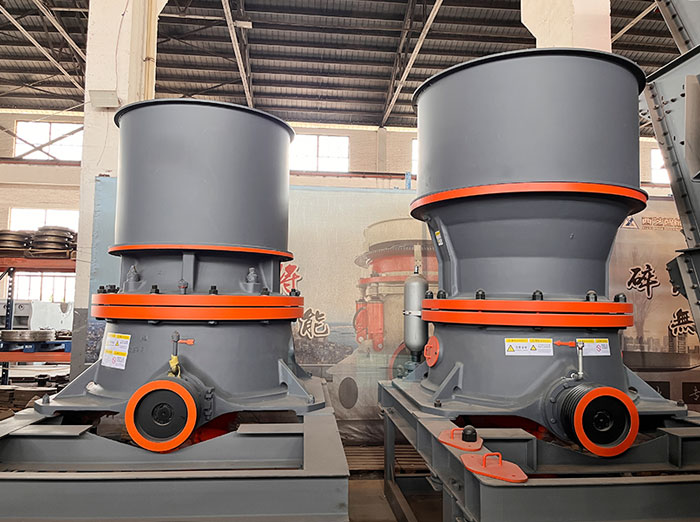

Key Features of the Hydraulic Cone Crusher: High crushing force, superior product shape, high automation, robust iron-passing protection, simple maintenance, and low operating costs; ideal for the medium and fine crushing of medium-hard to ultra-hard materials.

I. Laminated Crushing: Excellent Product Shape
Utilizing the principle of inter-particle lamination, material within the crushing chamber is crushed through mutual compression and grinding, rather than through the fracture of individual particles.
The finished product features a high cubicity content, minimal needle-like and flaky particles, and uniform grain size, making it suitable for high-standard aggregate applications (such as high-speed rail and concrete production).
It offers a large crushing ratio and high output of fine materials, boosting efficiency by 30%–50% compared to traditional spring cone crushers.
II. Fully Hydraulic Control: Intelligent and Efficient
Hydraulic Discharge Opening Adjustment: Precise adjustment can be performed without stopping the machine; it is remotely controllable and adaptable to various operating conditions.
Hydraulic Iron-Passing Protection: When uncrushable objects (such as iron blocks) enter the chamber, the hydraulic system automatically yields to prevent jamming and protect the main shaft from damage.
Hydraulic Chamber Clearing: A single-button operation clears the chamber in the event of a blockage, significantly reducing downtime and lowering labor intensity.
Equipped with an intelligent PLC system that monitors pressure, temperature, and flow rates in real-time to automatically optimize operating parameters.
III. Robust Structure: Powerful Crushing Force
Available in two categories: Single-cylinder (simple structure, lower cost) and Multi-cylinder (stronger crushing force, suitable for hard rock).
Features a heavy-duty frame constructed from thick-walled steel plates via welding, ensuring high rigidity and impact resistance; multi-cylinder models can generate a crushing force of up to 5,000–8,000 kN.
The main shaft utilizes a cantilever beam design supported by spherical bearings, ensuring high load-bearing capacity and stable operation.
Employs thin-oil lubrication combined with a labyrinth seal for superior dust prevention and minimal wear, extending the service life of wear parts by over 30%.
IV. Wide Applicability: Low Operating Costs
Capable of processing medium-to-high hardness materials such as granite, basalt, river pebbles, and iron ore.
Features a modular design with top and side disassembly capabilities; maintenance does not require dismantling the main frame, allowing for rapid replacement of liner plates.
Characterized by a high gyratory frequency and large eccentric throw, resulting in high power utilization efficiency and energy consumption that is 15%–20% lower than that of traditional equipment. V. Single-Cylinder vs. Multi-Cylinder: Key Distinctions
Single-Cylinder Hydraulic: Simple structure, low cost, and easy maintenance; suitable for soft to medium-hard and weathered materials, offering high throughput.
Multi-Cylinder Hydraulic: Powerful crushing force, high stability, and superior product shape; suitable for medium-hard to ultra-hard and highly abrasive materials, offering higher production capacity.
